SB01 User Manual


Connection Jacks

FIGURE 1.1
Connection Description Specification
USB USB-C for charging and data 5 V / 1.5 A
MIDI IN TRS MIDI input 3.5 mm Type-A
MIDI OUT TRS MIDI output 3.5 mm Type-A
PEDAL Sustain pedal input Normally open
MOD CV CV input to VCO/VCF modulation 0 ~ 5 V
TRIG IN Trigger input +2.5 V Min.
TRIG OUT Trigger output 14 V
CV IN Control voltage input 1 V/oct, 0 ~ 7 V
GATE IN Gate input +2.5 V Min.
CV OUT CV output from EXTERNAL channel 0.415 V ~ 5 V
GATE OUT Gate output from EXTERNAL channel 14 V
PHONES Stereo headphone output 8 Ω
OUTPUT Line level audio output 0 dBm Max.

Controls

FIGURE 1.2

Voltage Controlled Oscillator (VCO)

FIGURE 1.3

The voltage controlled oscillator (VCO) is where the multiple oscillator waveforms or tone sources of the SB01 are created.

The MOD depth control adjusts the amount that the LFO will modulate the pitch of the oscillator, depending on the waveform selected in the MODULATOR section.

The RANGE selector knob controls the pitch of the oscillator in one octave steps from 16’ to 2’. When this knob is set to 8’ and the TRANSPOSE is set to M, the lowest C note maps to the middle C of a piano.

Tip: In the CONFIGURATION TOOL, there is an option to toggle the RANGE to a 32' setting for access to even lower pitches.

Waveforms

The SAW wave contains a fundamental sine wave and its integral harmonic sine waves at a fixed ratio of 1/n. This wave makes a good starting point for brass, string, and guitar tones.

The PULSE wave contains the same fundamental sine wave and harmonics as the sawtooth, except there are no even-numbered harmonics. This wave has a hollow sound that is suitable for woodwinds.

Pulse Width

PULSE WIDTH modulation allows control over the duty cycle of the square wave, which is the proportion of time that a pulse waveform is high or low. For example, a square wave has equal parts high and low, like this:

FIGURE 1.4

While a wave with a narrower pulse width may look like this:

FIGURE 1.5

Both of these examples have the same frequency, but the harmonic content of the pulse wave will vary in proportion to the width of the pulses.

The PULSE WIDTH switch controls the mode that the modulation will operate in:

  • In LFO setting, the triangle wave LFO controls pulse width and the PULSE WIDTH slider controls the depth of modulation applied.

  • In MANUAL setting, the PULSE WIDTH slider manually controls the pulse width of the square wave from 50% to 5%.

  • In ENV setting, the envelope shape controls pulse width and the PULSE WIDTH slider controls the depth of modulation applied.


Source Mixer

FIGURE 1.6

The SOURCE MIXER section contains controls to sum together the tone sources created by the VCO into various proportions before sending them to the VCF, with the addition of white noise and sub-oscillator waveforms.

The PULSE level controls the amount of pulse waveform that is mixed in. The pulse width is configured using the controls in the VCO section.

The SAW level controls the amount of sawtooth wave that is mixed in.

The SUB OSC level controls the amount of sub-oscillator that is mixed in. The sub-oscillator is divided down from the oscillator and will thus be exactly one or two octaves lower than the VCO pitch. Using the SUB OSC switch, the output can be set to:

  • A square wave one octave below
  • A square wave two octaves below
  • A 25% duty cycle pulse wave two octaves below

The NOISE level controls the amount of white noise that is mixed in.


Voltage Controlled Filter (VCF)

FIGURE 1.7

The voltage controlled filter (VCF) is used to shape the tone color of the combined sound coming from the SOURCE MIXER section by cutting or boosting harmonics in the sound. The VCF in the SB01 is a four-pole low-pass filter based on the IR3109.

The FREQ slider controls the cutoff point of the low-pass filter to define the brightness of the sound, with the lower position cutting frequencies and the highest position letting all frequences pass.

The RES slider controls the amount of filter feedback (sometimes called resonance) that is applied at the cutoff point of the filter. This can emphasize certain harmonics and boost frequencies when shaping a sound or moving the cutoff.

The ENV slider controls the amount of depth that the output of the envelope generator modulates the filter cutoff position. The cutoff frequency will change with each note in the pattern of the ADSR pattern previously set, giving articulation to each note’s brightness.

The MOD slider controls the amount of depth that the LFO modulates the filter cutoff position. The filter cutoff will change depending on the waveform selected in the MODULATOR section.

The KYBD slider controls the amount of keyboard CV that is applied to the filter cutoff based on the note played. This can be useful for creating sounds that become brighter as higher notes are played.

Self-Oscillation

With the resonance control set to maximum, the resonant peak of filter will feed back into itself to the point of self-oscillation. This type of oscillation results in a pure sine wave with no harmonics.

To explore the filter in self-oscillation, set FREQ to about half, and set RES and KYBD to the maximum. The filter output will track the keyboard note played to within 1%. Use the FREQ slider to adjust the offset or turn down the other tone sources in the SOURCE MIXER to taste.


Voltage Controlled Amplifier (VCA)

FIGURE 1.8

The voltage controlled amplifier (VCA) section controls the amplitude, or volume of a note over time as it is played.

When the VCA is set to GATE mode, the volume of the note will be at the maximum as soon as a note is played, and will stop as soon as the note is released.

When the VCA is set to ENV mode, the volume of the note will follow the shape of the envelope generated by the settings in the ENV section.


Envelope Generator (ENV)

FIGURE 1.9

The envelope generator is a standard four-stage envelope. It can be used to modulate pulse width, filter cutoff, and most commonly- the amplitude of sound over time.

An envelope works in two stages. First, when the envelope is triggered (by a keypress or gate), it will increase its voltage to the maximum amount in a period of time controlled by the “attack” parameter. Once the maximum voltage has been reached, the envelope will decrease to another voltage level determined by the “sustain” parameter. The time it takes to get to the sustain level after the attack phase is controlled by the “decay” parameter. The envelope will stay at the sustain level until the note is let go.

Once the note is released, the envelope will return to zero voltage. The amount of time this takes is controlled by the “release” parameter. In summary – attack, decay, and release all control the time constants, while sustain controls the level.

FIGURE 1.10

The envelope is the primary way of shaping of a sound, especially when routed to the filter cutoff. For example, a typical “pluck” sound has no attack, a short delay, no sustain, and no release, while a “pad” sound may have a long attack and decay, a middle sustain, and a long release.

On the SB01, the envelope controls are:

  • A – Attack time of the envelope
  • D – Decay time of the envelope
  • S – Sustain level of the envelope
  • R – Release time of the envelope

Additionally, the three settings of the ENV mode switch controls how the envelope is triggered.

  1. In GATE mode, the envelope is started by a keypress event and will transition to the release phase when the last key is let go. If additional notes are played, the envelope will not reset to the beginning.

  2. In GATE+TRIG mode, the envelope will be started by a keypress event and will transition to the release phase when any key is let go. If additional notes are played, the envelope will reset at the beginning of each new note.

  3. In LFO mode, the envelope will be triggered by each cycle of the LFO when a note on the keyboard is played and held. The LFO/CLK RATE will also now reset on the first key press.


Modulator (LFO/CLK)

FIGURE 1.11

The MODULATOR section houses a low-frequency oscillator (LFO) and RANDOM waveform (Sample & Hold) that can be used to modulate several parameters across the synth including pitch, pulse width, and filter cutoff.

The LFO/CLK RATE slider controls the frequency of the LFO. The rate of cycling controls the speed of the arpeggiator and sequencer unless they are driven by an external clock source using the TRIG input.

Similar to bypassing the internal clock by using the TRIG input, enabling MIDI clock will decouple the LFO rate and allow it to free-run for modulation purposes.

The WAVEFORM switch selects the ouput shape of the LFO. Triangle and square are the output waveforms from the LFO, while the RANDOM output waveform is generated digitally. Each cycle of the LFO will produce a new random modulation level that is held until the next clock cycle.

The NOISE waveform is the internal white noise source and is not affected by the rate control.


Portamento

FIGURE 1.12

Portamento is the musical term for continuous pitch glide or slew between notes.

To enable portamento, toggle the PORTAMENTO switch to either ON or AUTO. The glide speed can be controlled using the PORTAMENTO knob.

In the ON position, the SB01 will glide in pitch between every note change.

In AUTO mode, the glide effect activates only when playing a new key while the previous key is still held down (legato playing). This “hold-and-glide” allows for selective control over how portamento is applied.

Example:

  1. Hold the C key. Then, play the G key.
  2. The oscillator will glide from C to G.
  3. If you release the C key before playing G, no glide will occur.

In the OFF position, the glide effect will not be applied.

Tip: The SB01 has independent PORTAMENTO settings for each channel of INTERNAL or EXTERNAL control. Portamento speed will be the same between both channels, while changing the toggle in each channel refreshes the PORTAMENTO state.


Bender

FIGURE 1.13

The main performance element of the bender section is the joystick.

Pitch and Filter Bend

The left and right direction of the bender joystick can be configured to control both the oscillator pitch and the filter cutoff. The BENDER VCO and BENDER VCF controls set the depth of modulation applied to each parameter when the joystick is moved.

LFO Mod / Vibrato

Pushing the joystick forward increases the amount of LFO modulation (Sine wave) that is applied to VCO pitch. The modulation depth is set by the LFO MOD knob above the joystick.

Vibrato Latch

Clicking the joystick will momentarily toggle the LFO vibrato modulation on. Holding SHIFT while clicking will latch the vibrato on and off, having the same effect as holding the joystick forward for constant vibrato effect.

Mod CV

The MOD CV input can be used to control the bender using an external control voltage. Signal applied to the MOD CV input is equivalent to moving the bender joystick to the right.

Tip: Using a cable, you can route the CV Output from the EXTERNAL Channel into the MOD CV Input to modulate and sequence the filter cutoff or pitch transposition from a sequence track.


Keyboard

The SB01 has 32 keys and 2.5 octaves, but can be played as a 56 key keyboard by using the TRANSPOSE button.

With the RANGE of the VCO is set to 8' and the TRANSPOSE is set to NORMAL, the lowest C note maps to the middle C of a piano.

Hold

Any key played can be held on after release by using the HOLD button (indicator will light).

When applied during a sequence, the HOLD function will sustain every note. The PEDAL input will also activate the HOLD function when pressed, similar to the damper pedal of a piano.

Chord Mode

CHORD Mode is a keyboard feature available on the EXTERNAL Channel while using MIDI. This mode allows a programmed interval or chord to played back by a single keypress.

Press SHIFT + HOLD to activate the CHORD function. If the chord requires more than one hand, use the HOLD function to play and hold down the individual notes, then activate the CHORD function. The lowest note of the saved interval will now trigger and transpose the entire chord across the keyboard.

Transpose

To enable the keyboard transpose function, hold the TRANSPOSE button down while pressing any key except for the lowest C key. The indicator will light and the keyboard will now play in the key of the chosen note.

  • If you press a key lower than the lowest C, it will be transposed down by the distance in pitch between the pressed key and the C.
  • If you press a key higher than the loewst C, it will be transposed up by the interval between the pressed key and C.

To disable the Transpose function, hold the TRANSPOSE button down while pressing the lowest C. The indicator will go out and the SB01 has returned to the normal condition (the key of C.)

Tip: You can freely change transposition while the Arpeggiator or Sequencer are playing.

Transpose Latching

Press SHIFT + TRANSPOSE to activate the transpose LATCH function. This mode allows the function to latch ON without needing to hold the button down while pressing a new key, allowing a single hand to dynamically transpose a running arpeggiator or sequence.


Arpeggiator

The Arpeggiator will automatically play any held notes as a progressive arpeggio.

Use the HOLD button to latch notes into the Arpeggiator and free hands for adjusting the sound.

Without using the HOLD function , any new notes played into the Arpeggiator will reset the LFO/CLK RATE on the first key press.

The speed of the Arpeggiator is controlled by the speed of the LFO/CLK RATE. If the SB01 is configured to accept an external MIDI clock, the rate of the Arpeggiator will follow.

Arpeggiator Modes

To enable the Arpeggiator, press or combine any of the three Arpeggiator mode buttons:

  1. UP: plays the arpeggiated notes from lowest to highest
  2. U+D: plays the arpeggiated notes from lowest to highest then reverses
  3. DOWN: plays the arpeggiated notes from highest to lowest
  4. U+D + UP: caterpillar up mode — the pattern will move two steps forward and one step backward
  5. UP + DOWN: corner mode — the pattern will repeat the first and last steps before changing direction
  6. DOWN + U+D: caterpillar down mode — the pattern will move two steps backward and one step forward
  7. DOWN + U+D + UP: plays the arpeggiated notes in random order

Tip: You can switch modes while the Arpeggiator is playing.

To disable the Arpeggiator, press the currently active mode again.

The TRANSPOSE function and transpose LATCH feature are both available to use with the arpeggiator.


Sequencer

The SB01 features a digital sequencer capable of storing and playing up to 256 steps in different creative patterns.

Tempo Control

  • Adjust the tempo using the LFO/CLK RATE knob.
  • Connect an external clock signal to the TRIG input.
  • Synchronize with an external MIDI clock.

Sequence Loading

  • Start Recording: Press the LOAD button and enter notes from the keyboard.
  • Stop Recording: Press the LOAD button again.
  • Add Rests: While recording, press the REST button to add an empty step.
  • Add Legato/Slides: While recording, press and hold the LEGATO button while entering notes to tie them together.

Sequence Playback

  • Play: Press the PLAY button. The sequence will loop continuously until stopped.
  • Stop: Press the PLAY button again.
  • Reset Function: Hold SHIFT and press the RESET button to reset a running sequence to the first step.

Sequence Play Directions

To change the sequencer playback direction, hold SHIFT and press or combine any of the three Arpeggiator mode buttons:

  1. UP: plays the sequence from first note to last
  2. U+D: play direction reverses after reaching the last note
  3. DOWN: plays the sequence from last note to first
  4. U+D + UP: caterpillar up mode — the sequence will move two steps forward and one step backward
  5. UP + DOWN: corner mode — the sequence will repeat the first and last steps before changing direction
  6. DOWN + U+D: caterpillar down mode — the sequence will move two steps backward and one step forward
  7. DOWN + U+D + UP: plays the sequence in random order

Tip: You can switch directions while the sequencer is playing.

Both the INT and EXT tracks can have independent sequencer directions.

Sequence directions are not retained when storing a sequence.


Storing and Recalling Sequences

The SB01 has 64 memory locations split across two banks that can be used for storing user sequences.

Each key on the keyboard represents a save location, of which there are 32 total in each bank. The currently active sequence can be saved to memory while while stopped or playing.

Saving a Sequence

  • Bank A: Hold SHIFT + WRITE A + KEY (1-32)
  • Bank B: Hold SHIFT + WRITE B + KEY (1-32)

Tip: Writing to a save location will overwrite any existing stored sequence.

Selecting Active Bank

  • Hold the BANK SELECT button and press WRITE A or WRITE B to select bank A or B for sequence recall.

Recalling Sequences

Jump Mode:

  1. Hold the JUMP button and press a KEY location to jump to the stored sequence.
  2. The target sequence will start immediately on the next clock step
  3. The target sequence can be restarted by entering the same location again.

Chain Mode:

  1. Hold the CHAIN button and press a KEY location to chain to the stored sequence.
  2. The target sequence will start immediately after the current sequence finishes playing.
  3. Multiple KEY locations can be entered serially in this mode, and the sequencer will chain all queued sequences in the order of entry until repeating.

Modulo Mode:

  • Hold the JUMP + CHAIN buttons and press a KEY location to “Modulo” jump to the stored sequence.

This mode will keep the absolute step number constant when jumping sequences, allowing alternation between sequences while keeping the underlying sequence length.


Internal / External Channel

The SB01 has a unique dual channel control architecture consisting of two parallel and independent keyboard and sequencer channels.

Each channel button represents the active control window, which shows the current state of the sequencer, arpeggiator, hold, and transpose functions for the selected channel. Both channels share the same clock, and can also be controlled together in BOTH mode.

Internal Channel

The INTERNAL track will always correspond to and control the internal synth “engine” of the SB01. It can also be configured to send MIDI data out.

External Channel

The EXTERNAL track offers another control layer on top of the internal synth, allowing a second keyboard, arpeggiator, and sequencer to independently control an external device that accepts CV / GATE or TRS / USB MIDI.

BOTH Mode

Press the INTERNAL and EXTERNAL buttons together to enter BOTH mode. While both channel LED’s are lit, all button actions will now apply to both channels.

Similarly, all keyboard inputs will apply to both channels even if they are in different modes. For example, different arpeggiator mode settings at the same time in each channel will respond differently to the same chord input from the keyboard.

When a function is active in both channels, the button will toggle between INT and EXT channel colors to reflect this. Exit BOTH mode by pressing INT or EXT to enter an individual channel’s control.

Tip: While using BOTH mode to control both channels simultaneously, the interface will follow a paradigm to prioritize action towards unifying channel states. For example, if one channel is in PLAY and another is stopped, pressing the PLAY button in BOTH mode will cause the stopped channel to start playing so they are now both in PLAY. Another press will stop both channels.


Power

The SB01 is powered by a rechargeable battery. To turn the synth on, slide the power switch on the left corner of the unit towards the right. The power LED above the TUNE knob will light amber.

To charge the synth, connect a USB-C power supply to the USB connection on the back of the unit. The power LED will turn green to indicate that the unit is currently charging.

  • If the synth is low on battery, the power LED will begin blinking at the rate of the LFO.
  • If depleted, the power LED will flash but the synth will not play until charged again.

Checking Battery Level

To check the battery level, hold SHIFT while pressing the BATT button. The approximate battery level will be indicated by the seven LEDs in the sequencer section.

Powering External Gear

The SB01 can also be used as a power source for external gear using it’s built-in battery. Simply connect a device to the USB port on the back of the synth while power is active. You can even charge your phone from it.

  • The maximum power output is 5V / 0.5A

Configuration Tool

Advanced settings for the SB01 can be configured through a WebUSB enabled browser.

Connect the synthesizer to your computer using a USB-C cable and click the on-screen notification.
If you don’t see a notification, try directing your browser to control.playsuperlative.com.

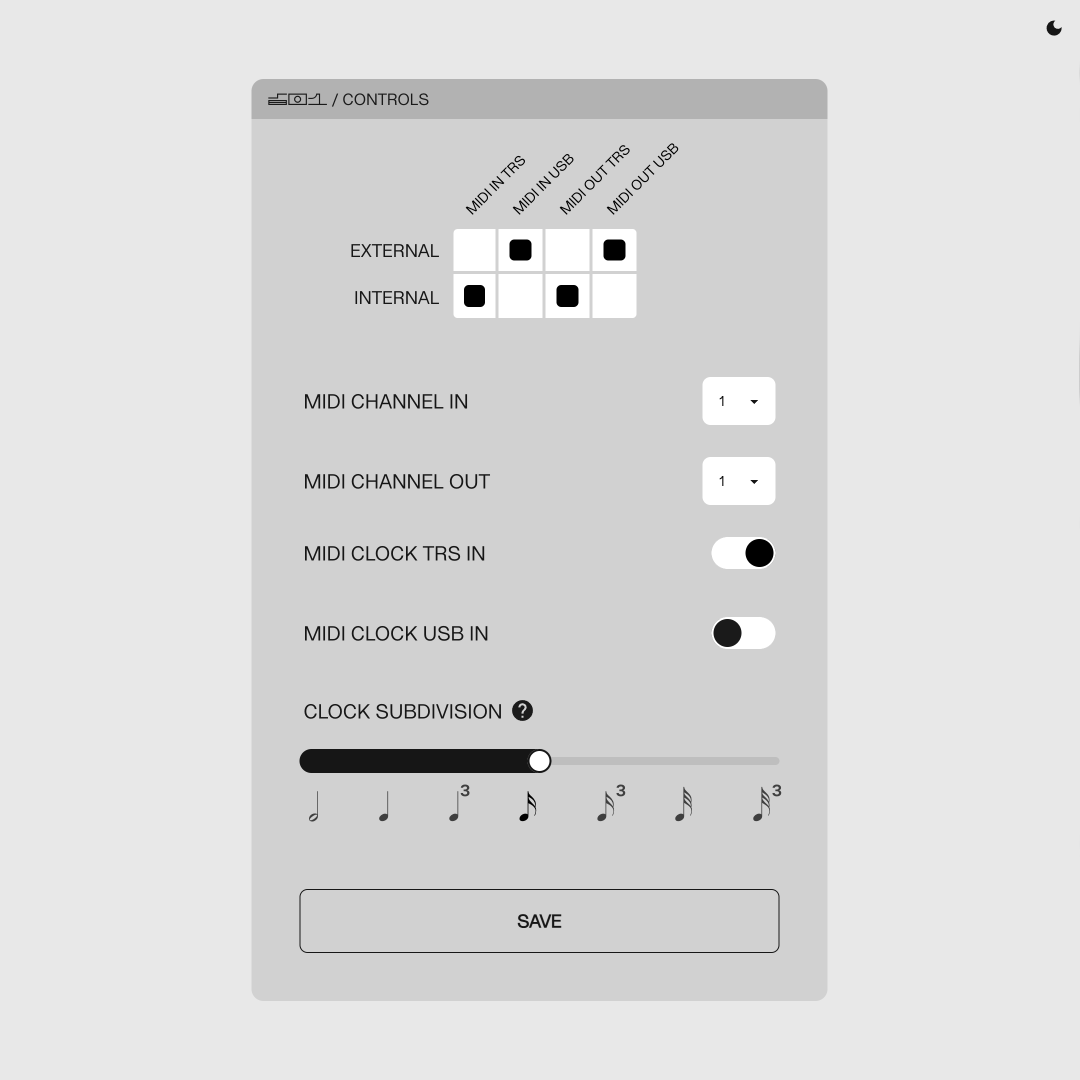

When the device is connected, the app will look like FIGURE 2.1.

FIGURE 2.1

Setting MIDI Channels

Use the MIDI CHANNEL IN and MIDI CHANNEL OUT selectors to set which channels the synth will listen to and transmit MIDI information on. There are separate MIDI channel settings for the INTERNAL and EXTERNAL channels.

Enabling MIDI Clock (MIDI Sync)

Use the MIDI CLOCK TRS IN switch to enable or disable MIDI clock sync on the TRS MIDI input.
Use the MIDI CLOCK USB IN switch to enable or disable MIDI clock sync on the USB MIDI input.
When enabled, the synth will listen to incoming MIDI clock messages and clock the sequencer and arpeggiator from this clock source, ignoring the LFO/CLK rate.

The CLOCK SUBDIVISION slider divides the incoming MIDI clock and sets the speed of the arpeggiator and sequencer.

32’ Range

When enabled, the RANGE toggle will span from 32’ to 4’ instead of the default 16’ to 2’ — letting you access the lowest possible octave the VCO can produce.

Reset to Factory Defaults

User configuration can be reset to factory defaults by holding both MEMORY buttons (JUMP + CHAIN) while powering on the device.

Tip: Use the sun/moon icon at the top right of the app to switch between light and dark mode.


Microtuning Tool

Custom tuning tables for the SB01 can be configured through a WebUSB enabled browser.

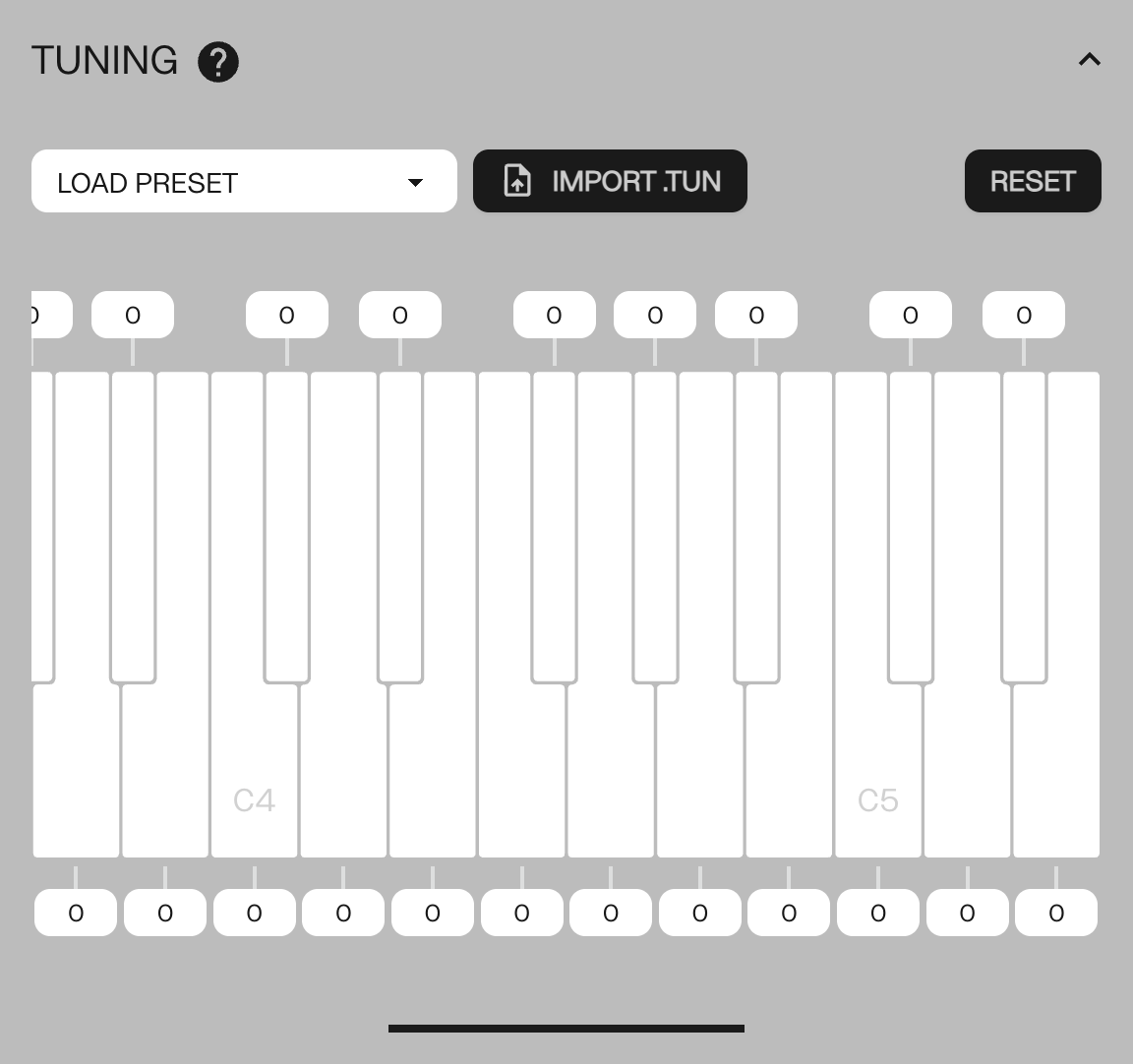

Tuning tables are edited in the CONFIGURATION TOOL app. FIGURE 2.2.

FIGURE 2.2

An adjustable tuning offset can be applied to each key on the SB01 in cents (-99 to +99). Click and drag on a key to adjust its offset, or enter a value directly in the input box. After entry, the offset will be directly applied to the connected synth.

Upon saving, the tuning table will be stored in the user tuning table slot.

Setting Active Table

If the first key on the keyboard is held at startup the custom tuning table will be loaded. If no key is held at startup, the default tuning table will be loaded.

Load Custom Tuning Tables

Importing a .tun file allows you to load an existing tuning table directly and go beyond +-99 cents. Press the IMPORT .TUN button and navigate to a .tun file, and the table will be applied.

Preset Tuning Tables

For microtonal exploration, several presets options are available.


MIDI Implementation Chart

Applies to both TRS MIDI and USB MIDI

Function Transmitted Recognized
MIDI channels 1 to 16 1 to 16
Note numbers (A4 = 440 Hz) F2 (41) to C7 (96) F2 (41) to C7 (96)
Pitch Bend No Yes
Mod Wheel No Yes
Sustain Pedal (CC# 64) Yes Yes
MIDI Clock No Yes
Song Select No Yes
Start / Continue / Stop No Yes

MIDI Mod Wheel

Incoming mod wheel messages to the INTERNAL channel will control the same CV as the MOD CV input. This can be used to control the filter or oscillator.

MIDI Latency

The SB01 features class-leading MIDI latency, measuring at 30µs-1ms on USB.


Firmware Update

To enter firmware update mode, perform the following:

  1. Turn off your SB01 using its power switch
  2. Connect to your computer with a USB-C cable
  3. Press and hold the SHIFT button while turning power on

The LFO/CLK RATE LED should now blink orange and green. In a compatible browser, navigate to firmware.playsuperlative.com. Note that in some instances your browser may automatically prompt you for this when the device is first connected.

To exit firmware update mode, simply turn your synth on and off again.

Browser Windows Mac OS Linux*
Chrome
Opera
Edge
Safari
Firefox

* For Linux users, you may have to add a udev rule to allow access to the USB device. Refer to this guide for more information.


Linux WebUSB Compatibility

Linux generally don’t ship with the necessary permissions to let the user open USB devices. If you are experiencing problems with WebUSB (the feature that allows control.playsuperlative.com and firmware.playsuperlative.com to function), this is most likely the issue.

Please note that these instructions are for Debian-like distributions, the fix for your distro may be different.

Run this script to enable WebUSB for the SB01:

curl -L https://control.playsuperlative.com/enable-superlative-sb01-webusb.sh | sh /dev/stdin

You may need to reboot your system for the changes to take effect.

Alternatively, manually perform the following:

  1. Ensure your user is in the plugdev group

    sudo adduser $USER plugdev
  2. Create the file /etc/udev/rules.d/50-superlative-sb01.rules with the following contents:

    SUBSYSTEM=="usb", ATTR{idVendor}=="0483", ATTR{idProduct}=="a417", GROUP="plugdev"
  3. Reload the udev rules

    sudo udevadm control --reload-rules

You may need to reboot your system for the changes to take effect.


Support
